Processes and Tools for Planning a Program - 6

Systems Engineering Management Plan (SEMP) - NASA’s Systems Engineering Handbook has concise definitions for the IMP and SEMP that are summarized here. The IMP, described above, defines how the project will be managed to achieve its goals and objectives within defined programmatic constraints. The Systems Engineering Management Plan (SEMP) is the subordinate document that defines to all project participants how the project will be technically managed within the constraints established by the IMP. The SEMP communicates to all participants how they must respond to pre-established management practices.

Note that the SEMP relates the planned systems engineering work to pre-established practices. This means, that like the IMP, the SEMP does not have to define from scratch how the project will be technically managed; it just has to define what standard practices will be used and any deviations from standard practices. Therefore, again like the IMP, the SEMP should not be a monster sized document that no one will ever read. There is a good discussion of SEMPs in NASA’s Systems Engineering Handbook. A concern with the NASA discussion is that it may lead teams to develop SEMPs that are much too detailed and therefore much too time consuming and expensive to prepare. The same concern exists with the discussion of the SEMP in IEEE Std. 1220. An outline for a SEMP that addresses these concerns was developed by Eric Honour of Honourcode, Inc. of Pensacola, FL in 2003.

A copy of Eric Honour’s outline is presented here with his permission. The only significant change made to is to strongly recommend that we recognize that today project documentation is almost always maintained in electronic format accessible via an enterprise’s intranet. Therefore one key to high quality documentation is achieving the “best” balance between copying material from one document to another and hyper linking between documents. An excess of hyper linking makes reading more tedious but excessive duplication also makes reading tedious for those that have already read other documents. A prescription for the “best” balance is not recommended here since it depends on the documentation particular to a specific organization. Authors of project planning documents should use their best judgment for achieving a good balance.

The following is Eric Honour’s outline in italics with the author’s comments in normal type:

 The topics and outline provide comprehensive coverage. Each topic should be considered in the planning for a program, and then reviewed at the beginning of each subsequent phase. Some topics may only receive cursory consideration in early phases, with later expansion. (E.g. Producibility Analysis, System Implementation Transition)

The SEMP should contain only those processes and plans that are unique to the program.

Initial creation of a SEMP should require between 2-5 working days. Expansion of the SEMP to full planning later may take 2-4 weeks. Revision effort during later phases varies from 2 days to 3 weeks.

A complete SEMP may be as few as 5 pages, or as many as 50.

 Annotated Outline

1.0 INTRODUCTION (Note that this section and section 1.1 should be identical to that in the IMP and copied from the IMP.

1.1 Overview

Identify the system and this document in one sentence. Use a sentence or two to summarize the purpose of this plan.

1.2 System Description

Describe the system, using text and/or figures as appropriate. This identical system description can be used in all plans created for this program. (E. g. define the design architecture using hardware and software trees.)

2.0 REFERENCED DOCUMENTS (Here is an example where the IMP should link to this List.)

List all documents that are specifically referenced within this document. Provide document number (including revision letter) and name in the format: ANSI/EIA-632 Processes for Engineering a System

3.0 TECHNICAL PROGRAM PLANNING AND CONTROL

3.1 Task Descriptions

3.1.1 Definition of Work

Define the technical work that must be performed under the contract. Show the contract work breakdown structure (CWBS), and describe the scope of each technical work package. Indicate the flow down of CDRL items to work packages (can be shown on the CWBS).

3.1.2 Subcontractor Work Effort

Define the work efforts to be performed by subcontractors or teammates under the contract. Identify the CWBS work packages containing this effort.

3.1.3 Schedule

      Show the program schedule. Identify development phases and major milestones. Show a task       network of task dependencies, with critical path. (I would copy the one page Master schedule   from the IMP and link to the detail schedule or IMS)

3.2 Organization

3.2.1 Technical Organization

Show a diagram of the technical project organization. Also include diagrams of the related program organization and functional organizations. In creating this diagram, consider the principles of concurrent engineering.  (Here is another opportunity for the IMP to link to more detailed information in the SEMP.)

3.2.2 Technical Functions

Provide a textual description of the responsibilities of each person in the technical project organization. Cross-reference responsibilities to the CWBS. Include subcontractor personnel, and include subcontractor monitoring responsibilities. (Section 4.3 of NASA’s System Engineering Handbook has an excellent and concise discussion of tying the lowest level of the CWBS to the responsible engineer or manager.)

3.2.3 Program Interfaces

Define the formal and informal technical interfaces to others. Consider customer and internal technical interface meetings, interface control working groups, and standards committees. Define how to control the interfaces - authority and responsibility.

3.3 Technical Control (Don’t forget the instruction in the beginning to include only things that are unique to the project. Don’t describe standard processes. Just note any tailoring specific to the project.)

3.3.1 Requirements Management

Describe the plans to manage technical issues on the program. Identify technical project meetings, issues tracking lists, issue resolution methods, and resolution authority.

3.3.2 Technical Issues Management

Describe the plans to manage technical issues on the program. Identify technical project meetings, issues tracking lists, issue resolution methods, and resolution authority.

3.3.3 Risk Management

Describe the plans to manage and mitigate technical risks on the program. Identify risk levels, threshold criteria and decision authority. Identify methods to identify risk, analyze risk and track risks. (Make the detailed Risk Management Plan a separate document and provide an overview here with links to the detailed plan. The reason is that the Risk Management Plan is a very active document that needs to be updated much more often than a SEMP as risks are mitigated and new risks are identified.)

3.3.4 Interface Control

Describe the plans to control interfaces within the system and between the system and other systems. Identify the interfaces to be controlled.

3.3.5 Configuration Control

Describe the plans to control baseline configuration of the system design. If a separate Configuration Management Plan exists, refer to it.

 3.3.6 Document Control

Describe the plans to control the documents on the program. Consider master documents, copies, and distribution. Include documents created by the program team and those received from external sources. (The plans should include an “Information Architecture” diagram. Include the diagram in this section along with the descriptions recommended.)

3.4 Performance Control

3.4.1 TPM Process

Define the process to gather and calculate Technical Performance Measures (TPM). Define the frequency of measurement. Define the methods to disseminate the results, including management visibility.

3.4.2 Technical Performance Measures

Define the TPMs to be calculated. Define the raw data required and sources. Define the calculation methods for each TPM.

3.5 Program and Design Reviews

3.5.1 Review Process

Define the process to be followed for program and design reviews.

3.5.2 Review Schedule

Show a schedule for the specific program and design reviews to be used. Describe the purpose and content of each review. (The reviews should be on the Master schedule. Only describe them here if the project is deviating from the organization’s standard processes for reviews. If the reviews are tailored project leaders should distribute copies of the tailored checklists ahead of preparation for each review; otherwise workers are likely to refer to standard documentation for reviews rather than to dig instructions out of the SEMP.)

4.0 SYSTEM ENGINEERING PROCESS

4.1 Process Description

In the subsections that follow, describe the program-unique processes in each phase. Use standards as a reference, and do not restate the processes therein. Consider each activity in each phase. Specifically address the automated tools that will be used and their interconnection.

4.1.1 Operational Definition

4.1.2 Requirements Definition

4.1.3 System Architecting

4.1.4 Preliminary Component Design

4.1.5 Detailed Component Design

4.1.6 Prototype Manufacture

4.1.7 System Integration

4.1.8 System Verification

4.1.9 System Validation

4.1.10 Operation and Maintenance

4.2 Related Processes

4.2.1 Electronics

Define the specific electronic engineering development processes to be used. Define the types of system engineering support required.

4.2.2 Software

Define the specific software development processes to be used. Define the types of system engineering support required.

4.2.3 Mechanical

Define the specific mechanical engineering development processes to be used. Define the types of system engineering support required.

4.2.4 Process Development

Describe the methods by which program processes will be monitored and improved. Consider the impact on systems engineering and other processes.

4.3 Trade Studies

4.3.1 Trade Study Process

Describe the process to be used in performing trade studies. Consider trade matrix formats, depth of analysis, and types of information. Describe how to handle multi-dimensional interdependencies.

4.3.2 Trade Study Tasks

Identify the major system trade studies to be performed. Indicate the issues and constraints, including interdependencies. (I highly recommend an N-Squared diagram be included here or linked to. See previous posts on N-Squared diagrams.)

4.4 Requirements Allocation

Describe the unique processes to be used to allocate requirements to system components. Use standards as a reference, and do not restate the processes therein.

4.5 Design Optimization/Effectiveness

4.5.1 Analysis Methods and Tools

Describe the mathematical, simulation, and/or prototyping methods to be used to optimize the design and measure its effectiveness. Define how these methods will be used to impact the design, in which phases. Identify the specific tools to be used. Describe how to handle multi-dimensional interdependencies.

4.5.2 Design Analyses

Identify the specific analyses, simulations, and/or prototypes that will be developed. Identify when each analysis will be performed, and by which personnel. Identify the issues and constraints on each, including interdependencies. Identify the results anticipated from each. Include technical and cost analyses. Consider the following possible types of analysis:

􀁹 Performance Analysis (Throughput, Latency, Dynamic Range, Bandwidth, Memory, etc.)

􀁹 Logistic Support Analysis

􀁹 Life Cycle Cost

􀁹 Design to Cost

􀁹 Design for Manufacturability

􀁹 Design for Test

􀁹 Producibility

4.6 Documentation (Additional recommendations for defining documentation are given below in the section titled Information Architecture.)

4.6.1 Specification Tree

Show a hierarchical diagram of the specifications that will be created for the system and its elements. Identify the type of each specification. Indicate which specifications are internal and which must be delivered. (Replace the specification tree with a document tree for a more complete description.)

4.6.2 Other Documents

List other documents that will be created. Indicate which documents are internal and which must be delivered.

4.6.3 Document Generation Methods

Describe the methods to be used to generate documents. Identify the specific tools, and their required interconnections. Describe the review and sign-off process.

5.0 ENGINEERING SPECIALTY INTEGRATION

5.1 Control of Engineering Specialties

Describe the integration and coordination of the various engineering specialties in each system engineering phase. Indicate how system engineering controls achieve the best mix of technical/performance values. Where the specialty programs overlap, define the responsibilities and authorities of each.

5.2 Integrated Logistics Support Plan

Summarize the approach to Integrated Logistic Support (ILS). Refer to a separate ILS Plan, if available. Consider the aspects of Logistic Support Analysis, Provisioning, and Training. Indicate the information needed by ILS and its source and time of need. Indicate the expected results and when.

5.3 Reliability/Maintainability/Availability Plan

Summarize the approach to Reliability/Maintainability/ Availability (RMA) analysis and control. Refer to a separate RMA Plan or plans, if available. Indicate the information needed by RMA and its source and time of need. Indicate the expected results and when.

5.4 Safety Plan

Summarize the approach to safety analysis and control. Refer to a separate Safety Plan, if available. Indicate the information needed by safety engineers and its source and time of need. Indicate the expected results and when.

5.5 Human Factors Engineering Plan

Summarize the approach to human factors analysis and control. Refer to a separate HFE Plan, if available. Indicate the information needed by human factors engineers and its source and time of need. Indicate the expected results and when.

5.6 Security Plan

Summarize the approach to security analysis and control. Refer to a separate Security Plan, if available. Indicate the information needed by security engineers and its source and time of need. Indicate the expected results and when.

5.7 Electromagnetic Effects Plan

Summarize the approach to electromagnetic effects analysis and control. Consider EMI, EMC, and TEMPEST as appropriate. Refer to a separate plan, if available. Indicate the information needed by electromagnetic effects engineers and its source and time of need. Indicate the expected results and when.

5.8 Value Engineering Plan

Summarize the approach to value engineering analysis and control. Refer to a separate plan, if available. Indicate the information needed by value engineers and its source and time of need. Indicate the expected results and when.

5. X (Other Plans)

(Describe other applicable specialty plans and programs such as: Test & Evaluation Master Plan; Quality Assurance; Nuclear Survivability; and Parts Control)

Processes and Tools for Planning a Program - 5

Critical Path Analysis – Critical path analysis needs further discussion because of issues that have emerged in modern complex projects. Modern software scheduling tools automatically determine and show the critical path for a project schedule. However, it is not good practice to just accept the first result for a complex project.

The simple example schedule discussed in the previous sections is a deterministic schedule; each task has a planned duration, a predecessor task and a successor task. Therefore there is a deterministic critical path. It should be obvious that the time estimate for each task has a probability associated with it. That is, there is some probability that the task will be completed in the time estimated. Therefore there is also a probability that an overall project will be completed in the time estimated by summing the times for the tasks on the critical path. Unfortunately project schedules are sometimes treated by project leaders, managers and customers as though the schedule is deterministic and any overrun in schedule is the result of poor management rather than the result of real world variation due to probabilistic time estimates.  Likewise the team management is given credit for excellent management should the project come in ahead of schedule due to the same variation phenomena.  Of course there is usually some truth in assigning credit or blame to the project leaders because they have numerous tools for managing a project in order to maintain schedule in spite of variations in the time to complete individual tasks. However, using probabilistic time estimates in PERT scheduling, or the alternative recommended in Glen B. Alleman’s blog cited in the section on developing schedules, gives both the project leaders and those overseeing the projects a much better feel for the likelihood that the project will complete by a certain date.

Probabilistic time estimates are achieved by estimating an optimistic time, a pessimistic time and a most likely time for completing each task.  The expected task duration is then defined as the mean of the distribution defined by the three estimates and is between the most likely and the pessimistic times for a beta distribution used in the standard probabilistic approach.  One might expect that the critical path is the sum of tasks with zero slack in the resulting network using expected durations. But since there is a variance for each task estimate there is also a variance for the critical path schedule and therefore a probability associated with completing the project by any number of days less or more than the expected total. Since all tasks have a time to completion variance there is also probability that some path other than the most probable critical path becomes the critical path. Thus to get the most accurate probabilistic estimate of overall schedule it is necessary to analyze all paths and the probability that the project will complete by a certain date is actually the probability that all paths will complete by that date. Alternately simulations considering all paths can be carried out. A shortcut to analyzing all paths may be useful for some projects.

Consider the example of projects for developing systems with hardware and embedded software. There are often several candidates for the critical path in the early part of such projects. This is in contrast to complex projects in the past without embedded software. In the past there was typically some long lead part or assembly that drove the overall schedule so that the critical path usually turned out to be driven by the design and procurement of this long lead item. Modern digital electronics enable systems with complex data acquisition and analysis. Such systems often have special purpose digital circuits with embedded software involved in the acquisition and processing of data. The digital circuit design is usually a relatively high risk task so the designers want to build and test breadboard circuits as soon as possible so that designs can be refined and risk reduced before integrating these circuits with the overall electronics. However, these circuits require embedded software for carrying out their intended functions. Systems engineering must develop specifications for both the digital hardware and for the software. If the scheduling is done in the usual way these tasks end up driving the overall schedule in unsatisfactory ways. Managers may become confused if they expect the usual long lead parts to be driving the critical path, not risk reduction tasks.

To get estimates for scheduling the digital electronics and software tasks so that the risk reduction tasks aren’t on the critical path it is necessary to get the digital designers, the software engineers and the systems engineers to sit down together and work out plans to make these tasks fit together and complete as early as possible. Even with the best efforts of the engineers the resulting schedules often end up with digital electronics, embedded software and some long lead parts all having paths with zero or near zero slack. This says that it’s not possible to accurately tell which will end up the true critical path because of the variance in the time for each path is larger than the difference in slack. A way to handle such scheduling problems is to calculate the expected duration of each of these potential critical paths. It’s not necessary to calculate the expected duration for all paths on such projects because it is highly likely that these few paths with near equal durations drive the critical path. Determining the expected duration for each of these few paths also helps convince managers that the scheduling is sound even if their assumed critical path turns out to be not the most likely critical path.

The situation described for complex systems having special purpose digital electronics and embedded software seems likely to occur in other types of complex projects. If an organization is using deterministic schedules and is faced with a project schedule that has several paths with zero or near zero slack it is recommended to use probabilistic time estimates and to calculate the expected duration for the several candidate critical paths. It likely isn’t necessary to expend the effort and cost to calculate the expected durations for all paths. If an organization uses probabilistic scheduling routinely then spend the effort to involve all the personnel on the tasks that are candidates for the critical path so that they reach an understanding of the relationships of each other’s tasks and explore approaches to workarounds that may shorten schedules as well as result in a better estimate of the true critical path.

Processes and Tools for Planning a Program - 4

Rolling Wave Scheduling - Projects have schedule risk due to uncertainty in the outcomes of future design and risk management actions. Therefore it is not possible to predict long term schedule details with high confidence. If long term schedules are prepared in detail then these details become inaccurate and require rescheduling after a few months of work. The detail schedule should be developed using rolling wave planning to minimize having to rework the detailed planning whenever an unexpected event changes the work and requires replanning of future work in order to meet the intended milestones. Rolling wave planning is a method of managing in the presence of future uncertainty due to risk. Plan the schedule in detail for two to four month periods, e.g. to the next major milestone, and with less detail beyond this period. The schedule should be updated regularly to maintain two to four months of future detailed schedule. This is necessary to identify contentions for critical resources and plan for resolving these contentions. (Recall the value of progressive design freeze discussed earlier.) Note that the NASA Handbook recommends rolling wave scheduling but suggests scheduling in detail for one year periods. A year is too long and results in unnecessary rework of schedules.

A second reason rolling wave planning is effective is that risk mitigation activities should be integrated into the master schedule. Risk management is an ongoing activity; as selected risks are mitigated others take their place. Design decisions can lead to the identification of new risks that must be mitigated. Rolling wave planning and scheduling allows the dynamic risk mitigation tasks to be integrated into the overall project schedule and budget; facilitating effective management.  Thus rolling wave planning allows efficient planning in the presence of uncertainty of design results due to the risks inherent in product development.

An Alternative Scheduling Approach - The section on defining and sequencing tasks described how to use N-Squared diagrams to define and sequence project tasks in the optimum sequence. N-Squared diagrams are an alternative to the work flow diagrams described in the NASA Systems Engineering Handbook.  Let’s assume that detailed N-Squared diagrams, or work flow diagrams, have been developed for the first phase of a project. This means that there is a top level diagram for the entire project that defines the top level summary tasks and their interrelationships. There are more detailed diagrams for the second and third levels of those top level tasks associated with the first phase of project work, e.g. from project initiation to the first major milestone. Now the job is to convert this task data into a time phased detailed schedule for the first phase of project work.

Assuming that a modern scheduling tool, such as MicroSoft Project, is used it doesn’t really matter whether the final schedule is a Gantt chart or a PERT chart because the scheduling tool can automatically generate one from the other. Thus there are several paths that can be followed from the N-Squared diagrams to the final detailed schedule for the first phase of project work. The N-Squared diagrams contain all the information necessary to go directly to either a PERT or Gantt chart. However, if the person generating the schedule isn’t highly experienced there is an alternate path that is often helpful where there are many feedback loops and possibilities for starting tasks in parallel. This path inserts a second diagram between the N-Squared diagram and the PERT or Gantt schedule.

This second diagram is called a Time Blocked Task List. It’s a simpler form of the work flow diagram or the precedence diagram defined in the NASA handbook in that it only displays sequencing of tasks. Working from the detailed level N-Squared diagrams generate rows of squares with task numbers in each square like the squares and task numbers in the N-Squared diagram. Except now tasks are not confined to the diagonal squares. The idea is to put tasks that feed from one to another in sequence on the same row or adjoining row. If the N-Squared diagrams indicate that two tasks can be started in parallel then put the second task in a row below the row containing the first task and directly below the first task. These are not rigid rules; any form is acceptable as long as each output from each task is separately feeding its appropriate destination task. What is important is positioning the tasks in columns so that the columns are in the sequence the tasks must be performed, hence the name time blocked task list. Arrows are drawn between tasks showing the feed of information from task to task.

If there is a feedback loop where data from a task is needed to replace assumptions or estimates used in earlier tasks and the earlier task must be repeated after the data is available indicate the second pass through tasks with squares following the first pass task and in the same row. Use the same task number but add a letter designator showing that this block is a second pass through the task. An example of a simple time blocked task list is shown in Figure 4-3 for the N-Squared diagram shown in Figure 4-1. This diagram explicitly shows the tasks that must be repeated due to feedback loops. The position of block 4 shows that this task can start at any time between the beginning of the project and just early enough to complete as soon as task 3a completes so that task 5 is not delayed.

Figure 4-3 A Time Blocked Task List explicitly shows sequencing of tasks in feedback loops.

The value of the Time Blocked Task List is that it enables the inexperienced person scheduling tasks to identify more clearly when parallel tasks can be scheduled and it forces recognition that feedback loops require additional time to complete the second pass through the tasks involved. The reason that it’s so important to clearly identify when parallel tasks can be scheduled is that this gives maximum schedule flexibility in scheduling critical resources. Experienced schedulers can skip the Time Blocked Task List but it’s worth the effort for inexperienced schedulers to ensure that parallel tasks are clearly defined as to possible start and finish times and that time is explicitly scheduled for executing feedback loops. There is no need to develop a time blocked task list for an entire project, just block out tasks that have feedback loops and possibilities for parallel starts. Having worked out these details in the simple Time Blocked Task List it is easy to develop accurate Gantt or PERT charts. An example Gantt chart schedule for these tasks is shown in Figure 4-4.

Figure 4-4 An example schedule chart for the six tasks defined and sequenced in Figure 4-1.

Processes and Tools for Planning a Program - 3

Defining Tasks and Developing Schedules

Defining and Sequencing Tasks – The NASA Systems Engineering Handbook discusses in section 4.4 the use of work flow diagrams (WFD) for developing schedules. The WFD is a graphical representation of tasks, task precedencies or dependencies and “products or milestones” that occur as a result of one or more tasks. Using the WFD as defined can lead to scheduling problems due to not fully defining each task. It’s possible to expand the definition of the WFD so that tasks are fully defined. However, there is a simple tool for more completely defining and sequencing tasks that can be used in conjunction with or independently of the WFD before any schedule below the top level is developed.

A simple and effective tool for defining and sequencing detailed tasks is the N-Squared diagram.  N-Squared diagrams are traditionally used in defining software and hardware interfaces but are just as valuable for defining interfaces between tasks. N-Squared diagrams are constructed for tasks and subtasks as a nested set using spreadsheet tools. Tasks are listed in squares along the diagonal set of squares in an N x N matrix of squares. In addition to putting the task name in a diagonal square other information useful to the project team can be added; e.g. the Work Breakdown Structure (WBS) number of the task, or perhaps the task leader’s name, or a paragraph number in a proposal or task description document that describes the task.

N-Squared diagrams can be developed top down or bottoms up or using a mix of bottoms up and top down. Here it is described as a top down process but don’t be constrained by this description. Start with a list of N tasks of the same level in the order you think they need to be executed. Top level tasks often have multiple levels of subtasks. List each top level task in turn in one of the squares along the diagonal of the N x N matrix.  The N-Squared diagrams for the subtasks of each task are constructed as separate diagrams.

The next step is to write the external inputs to the tasks in the row above the diagram and above the square containing the task that the external inputs feed into. Then write the outputs of the first task in squares that are to the right of the first square in the first row of squares. Each output is to be in the square directly above the diagonal square containing the task that requires the output from the first task as an input.  Then continue this process for each diagonal square. Outputs that feed tasks in diagonal squares that are above the row go in boxes to the left of the diagonal square and outputs that feed tasks in diagonal squares that are below the row go in boxes to the right of the diagonal square. This process defines the tasks in that the inputs and outputs of each task are identified along with the sources of the inputs and the tasks that need the outputs.

After completing this listing of outputs for each diagonal square examine the form of the resulting N x N matrix. A simple example with six tasks, one external input to task 1 and two outputs from tasks five and six is shown in Figure 4-1. In this figure the tasks are labeled with numbers along the diagonal and the outputs from tasks are labels with letters. Arrows can be added to make it clear which task each output feeds, as shown in Figure 4-1.

Figure 4-1 An N-Square diagram is a useful tool for defining tasks and the relationships between tasks.

An ideal sequence of tasks for a perfectly sequential project has outputs only to the right side of the diagonal. Typical projects have some tasks with outputs on the left of the diagonal squares. These outputs represent feedbacks to earlier tasks. Typically in executing the tasks in the diagonal squares that have feedbacks from tasks in squares in lower level squares assumptions or estimates are made for the inputs needed from lower level tasks and the tasks are reviewed or repeated after the lower level tasks are completed. Thus the form of the N x N diagram defines how efficiently the tasks are ordered. If there are a lot of outputs on the left side of the diagonal it is necessary to see if reordering the tasks results in moving more outputs to the right of the diagonal and thereby reducing the number of feedback loops that must be executed. Executing feedback loops increases the time and cost for completing the work. Therefore sequencing the tasks for a minimum number of feedback loops usually means achieving a task sequence that leads to the least rework, the shortest schedule and the lowest cost.

Often it is easy to get the top level summery tasks in the most efficient order even without using an N x N diagram. The value of this tool comes in sequencing lower level tasks. Once the top level tasks are sequenced then prepare N-Squared diagrams for each of the top level tasks. For example, suppose one of the top level tasks is System Trade Studies. Complex systems can have a dozen to several dozen system trades that are highly interrelated. It takes only a few hours to define the best order for the trades using an N-Squared diagram. Having just one or two tasks out of order can increase the time for completing all trades by days or even weeks.

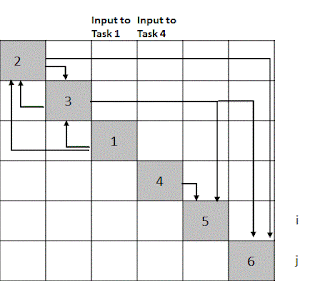

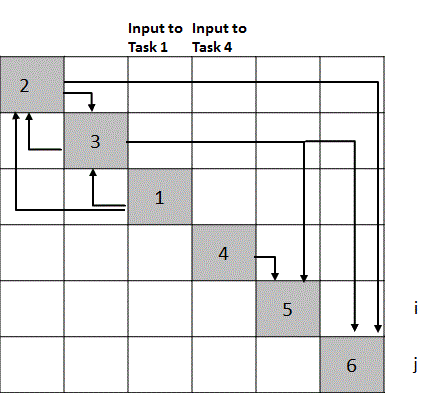

Figure 4-2 illustrates an N-Squared diagram for the tasks defined in Figure 4-1 with task 1 sequenced to follow tasks 2 and 3. In this figure only arrows are used to indicate outputs from tasks and where the outputs are needed to make it easier to see the effects of sequencing errors. The sequence in Figure 4-2 is obviously less desirable than that of Figure 4-1 because there are multiple feedbacks, which increases the time needed to execute these six tasks compared to the time for the sequence shown in Figure 4-1.

Figure 4-2 This sequence has three outputs to the left of the diagonal compared to one for the sequence shown in Figure 4-1 and therefore takes more time to execute all six tasks.

There is a second payoff from constructing an N-Squared diagram. The form of the diagram not only defines the most efficient sequence for tasks it also shows which tasks can be conducted in parallel.  For example, note that task four has externally available input data and requires no data from any of the first three tasks. Thus the fourth task can be started in parallel with the first task, or at any time such that its output is available at the start of task five. Obviously tasks can be started as soon as the necessary inputs from earlier tasks are available and staff is available to execute the task. For example, in Figure 4-1 if there was no output from task 3 feeding to task 6 then task 6 could be executed any time after task 2 and the repeat of task 2 with data from task 3 is complete. The form of the N-Square diagram reveals immediately all tasks that can be started in parallel. Starting tasks in parallel increases the flexibility in staffing. Achieving maximum schedule flexibility, i.e. maximum lead and lag times for tasks, should be one of the goals of scheduling tasks.

To avoid the rework resulting from too much detailed task planning and scheduling in the initial project planning effort prepare second and third level N-Squared diagrams for only those top level tasks that are likely to be executed in the first two to four months of the project. Second and third level diagrams for summary tasks that are to be executed later should be developed with sufficient lead time before these tasks are to begin to allow for planning the staffing of the upcoming tasks.

Finally, N-Squared diagrams are often a very useful visual aid to communicate to customers and managers the scope and status of project work. A skilled project manager on a satellite program posted a project N-Squared diagram where it could be easily reviewed by customers and team members. He colored tasks to show task completions so that status was communicated at a glance. This gave the customers increased confidence in the project team and project management compared to just seeing schedule charts.

Developing the Schedule – This discussion assumes that those responsible for developing the schedule are familiar with both the principles of network scheduling, such as Program Evaluation and Review Technique (PERT) or Critical Path Method (CPM), and are skilled in using modern scheduling software tools. This material is not intended to teach scheduling but systems engineers need to be aware of some pitfalls in scheduling complex projects. A recommendation for the inexperienced scheduler is to study a text book on scheduling projects. James B. Dilworth’s “Production and Operations Management” contains an excellent discussion of scheduling.  Particularly important is Dilworth’s discussion of PERT using probabilistic time estimates. An alternative view of probabilistic schedules is found on the web in a blog post by Glen B. Alleman and should be studied by anyone involved in scheduling complex projects. Finally read Eliyahu M. Goldratt’s book “Critical Chain” or search “Critical Chain” on the web and read about Critical Chain Project Management (CCPM). The NASA Systems Engineering Handbook has a description of a process to develop a network schedule after finishing work flow diagrams or N-Squared diagrams. This description isn’t repeated here but a couple of comments are needed.

First, the NASA process calls for a bottom up approach; lower level tasks for subsystems or other work products are scheduled and then these groups of tasks are integrated in the scheduling tool to form the complete detail schedule. This can lead to difficulties and a lot of rework. The rework process is described in the NASA Handbook but much of the rework can be avoided by developing the detail schedule top down.

Typically projects have schedule constraints and developing the schedule bottom up leaves to the end the work of making the complete schedule comply with the constraints where it becomes complex and error prone. It is recommended that when a project has schedule constraints or when the project team wants to meet fixed dates for major milestones and deliveries then include these constraint dates on the Master schedule. Then develop the detail schedule top down from the Master schedule. Scheduling tools can combine these two schedules into what truly can be called an integrated master schedule (IMS).

The top down approach works best if the persons developing the schedule meet with those knowledgeable of the work needed at lower levels and work out the details necessary to comply with the constraints. This is time consuming but actually takes less time than it does to fix a complete schedule that doesn’t meet constraints. Plus, the bottom up approach nearly always results in having to go back to those responsible for the lower level tasks and rework the task details. This is aggravating to workers and managers.

Second, the NASA process does not discuss the variability of task durations and probabilistic scheduling that accounts for this variability. Probabilistic scheduling is most important for accurately determining the critical path. Probabilistic scheduling is discussed in a later section on critical path analysis.
